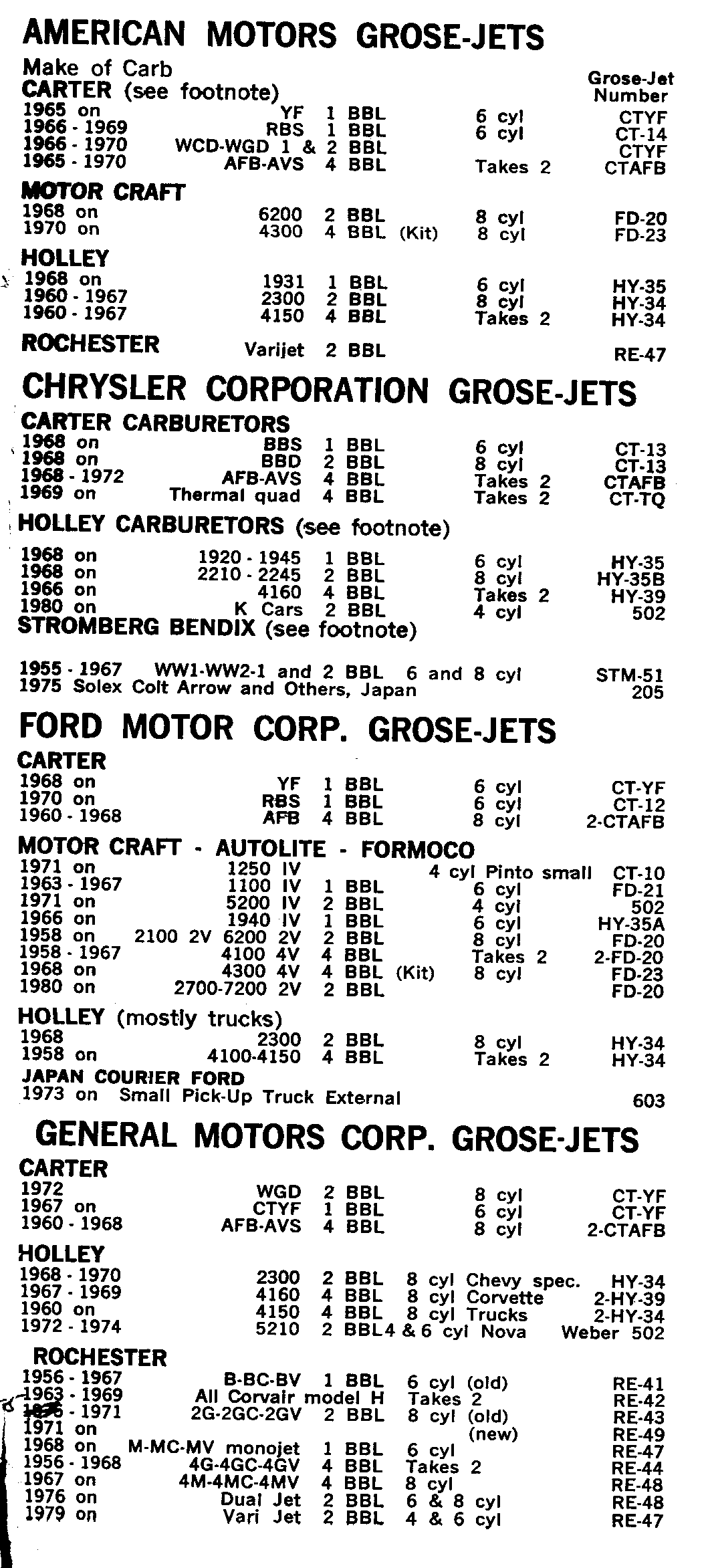

AMERICAN MOTORS
CARTER
1965 on     YF        1 BBL.    6 cyl        CTYF
1966-1969    RBS        1 BBL.    6 cyl        CT-14
1966-1970    WCD-WGD     1&2 BBL.            CTYF
1965-1970    AFBAVS     4 BBL.    takes 2    CTAFB

MOTORCRAFT
1968 on    6200        2 BBL.    8 cyl        FD-20
1970 on    4300         4 BBL. (kit)8 cyl        FD-23

HOLLEY
1968 on    1931         1 BBL.    6 cyl        HY-35
1960-1967    2300         2 BBL.    8 cyl        HY-34
1960-1967    4150         4 BBL.    takes 2    HW-34

ROCHESTER    Varijet     2 BBL.            RE-47

CHRYSLER CORPORATION
CARTER
1968 on    BBS        1 BBL.    6 cyl        CT-13
1968 on    BBD        2 BBL.    8 cyl        CT-13
1968-1972    AFB-AVS     4 BBL.    takes 2    CTAFB
1969 on    Thermal Quad    4 BBL.    takes 2    CT-TQ

HOLLY
1963 on    1920-1945    1 BBL.    6 cyl        HY-35
1963 on    2210-2245    2 BBL.    8 cyl        HY-35B
1960 on    4160        4 BBL.    takes    2    HY-39
1980 on    K Cars    2 BBL.    4 cyl        502

STROMBERG BENDIX
1955-1967    WW1-WW2    1 & 2 BBL.     6 & 8 cyl    STM-51

SOLEX
Japan 1975 SOLEX Colt Arrow and others        205

FORD MOTOR CORP.
CARTER
1968 on    YF        1 BBL.    6 cyl        CT-YF
1970 on    RBS        1 BBL.    6 cyl        CT-12
1960-1968    APB        4 BBL.    S cyl        2-CTAFB

MOTORCRAFT - AUTOLITE - FOMOCO
1971 on    1250 IV        4 cyl Pinto small    CT-10
1963-1967    1100 IV    1 BBL.    6 cyl        FD-21
1971 on    5200 W    2 BBL.    4 cyl        502
1966 on    1940 IV    1 BBL.    6 cyl        HY-35A
1958 on    2100 2V&6200 2V 2 BBL.    8 cyl        FD-20
1958-1967    4100 4V    4 BBL.    takes 2    2xFD-20
1968 on    4300 4V    4 BBL.(kit)    8 cyl        FD-23
1980 on    2700-7200 2V    2 BBL.            FD-20

HOLLEY (mostly trucks)
1968        2300         2 BBL.    8 cyl        HY-34
1958 on    4100-4150    4 BBL.    takes 2    HY-34
Japan Courier Ford
1973 on    Small pickup truck External        603

GENERAL MOTORS CORP.

CARTER
1972        WGD        2 BBL.    8 cyl        CT-VF
1967 on    CTYF        1 BBL.    6 cyl        CT-YF
1960-1968    AFO-AVS    4 BBL.    8 cyl        2-CTAFB

HOLLEY
1968-1970    2300        2 BBL.    8 cyl Chevy spec.    HY-34
1967-1969    4160        4 BBL.    8 cyl Corvette    2-HY-39
1960 on    4150        4 BBL.    8 cyl trucks    2-FY-34
1972-1974    5210        2 BBL.    4&6 cyl Nova    Weber 502

ROCHESTER
1956-1967    B-BC-BV    1 BBL.    6 cyl (old)        RE-41
1963-1969    all Corvair model H        takes 2        RE-42
1955-1971    2G-2GC-2GV    2 BBL.    8 cyl (old)        RE-43
1971 on                    8 cyl (new)        RE-49
1968 on    M-MC-MV monojet1 BBL.    6 cyl          RE-47
1956-1968    4G-4GC-4GV    4 BBL.    takes    2        RE-44
1967 on    4M-4MC-4MV    4 BBL.    8 cyl            RE-48
1976 on    dual jet    2 BBL.    6&8 cyl        RE-48
1979 on    Vari Jet    2 BBL.    4&6 cyl        RE-48


TILLOTSON Carbs
Model        Orifice Sizes        G-J #
HD    0.084, .099, .114, .130,.145    901
HD        Main Jet            90lE
HR     .084, .099, .114, .130        902
HR        Main Jet            902E
HL-200 .084, .099, .114, .130        902
HL        Main Jet            902E
HL-100    Old Style long valve
     .084, .114                903
TC3    Outboard: press in w/O-ring
     0.084, .099, .114        906


KEIHIN carbs
Short diaphragm: press in with O-ring
    0.099, .130                802
Long fuel pump: press in w/O-ring
    0.084                    804


MIKUNI carbs
36-44    mm    0.069, .084, .114        1102
17-34    mm    0.069, .084, .099        1103
Gravity    0.084 long            1104
34 mm diaphragm short
0.084, .099, .114        1105

WALBRO carbs
WF1 Float        0.084            WAL-1
LMB Float    0.064, .099, .114        WAL-2


LECTRON carbs
Float            0.084            EL-1


MERCURY outboards
2 BBL float 0.084, .099, .114        MERC-3


Outboard Marine
Float        0.084, .099, .114         OM-1


Briggs & Stratton carbs
Small screw in            BS-1
Large screw in            BS-2


American Zenith carbs
Small Engines            Z-62
Mediun Engines            Z-60
Large Engines            Z-6 1


Marvel-Schebler                MS-70

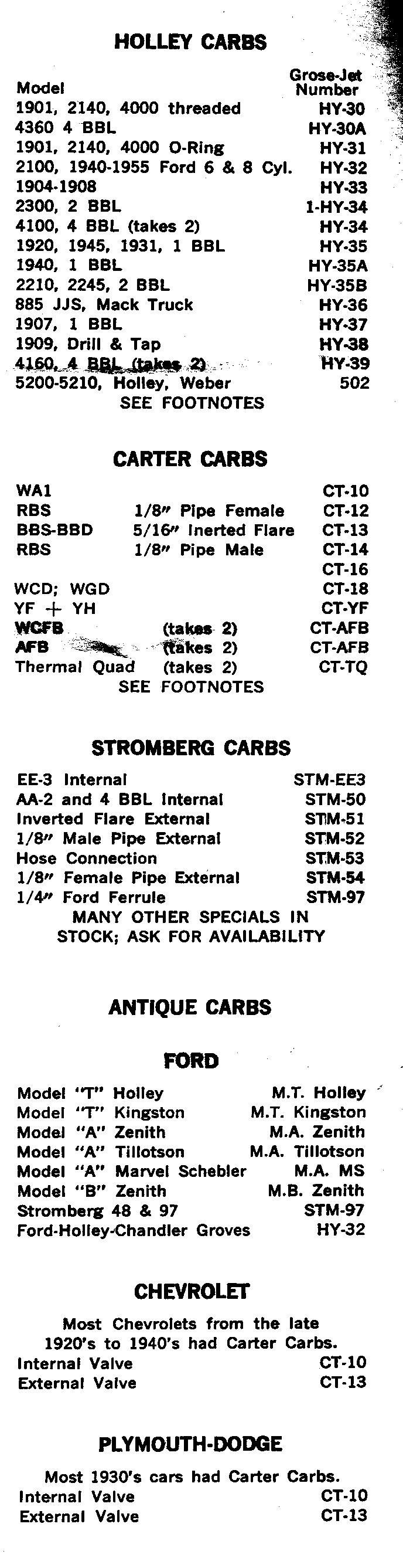

HOLLEY carbs
Model                                     G-J #
1901, 2140, 4000 threaded    HY-30
4360     4 BBL.            HY-30A
1901, 2140, 4000 O-ring        HY-31
2100,    1940-1955 Ford 6&8 cyl.    HY-32
1904-1908                HY-33
2300,    2 BBL.            1-HY-34
4100,    4 BBL. (takes 2)        HY-34
1920,    1945, 1931 1 BBL        HY-35
1940,    1 BBL.            HY-35A
2210,    2245, 2 BBL.        HY-35B
885 JJS, Mack Truck        HY-36
1907,    1 BBL.            HY-37
1909,    drill & tap            HY-38
4160, 4 BBL. (takes 2)        HY-39
5200-5210, Holley, Weber    502

CARTER carbs
WA1                    CT-10
RBS       1/8” pipe female    CT-12
BBS-BBD  5/16” inverted flare    CT-13
RBS       1/8” pipe male         CT-14
                    CT-16
WCD; WGD                CT-18
VF + YH                CT-YF
WCFB      (takes 2)        CT-AFB
AFB         (takes 2)        CT-AFB
Thermal Quad  (takes 2)        CT-TQ


     STROMBERG carbs

EE-3         internal        STM-EE3
AA-2 and 4 BBL internal        STM-50
Inverted Flare external        STM-51
1/8” male pipe external        STM-52
Hose connection            STM-53
1/8” female pipe external    STM-54
1/4” Ford ferrule            STM-97


      antique carbs
FORD
Model “T” Holley              M.T. Holley
Model “T” Kingston          M.T. Kingston
Model “A” Zenith              M.A. Zenith
Model “A” Tillotson          M.A. Tillotson
Model “A” Marvel Schebler    M.A.Marvel Schebler
Model “B” Zenith              M.B. Zenith
Stromberg 48 & 97            STM-97
Ford-Holley-Chandler Groves    HY-32

CHEVROLET
Most Chevrolets from the late
1920’s to 1940’s had Carter Carbs.
Internal valve        CT-10
External valve        CT-13

Plymouth-Dodge
Most 1930’s cars had Carter Carbs.
Internal valve        CT-10
External valve        CT-13



======================================

================================================

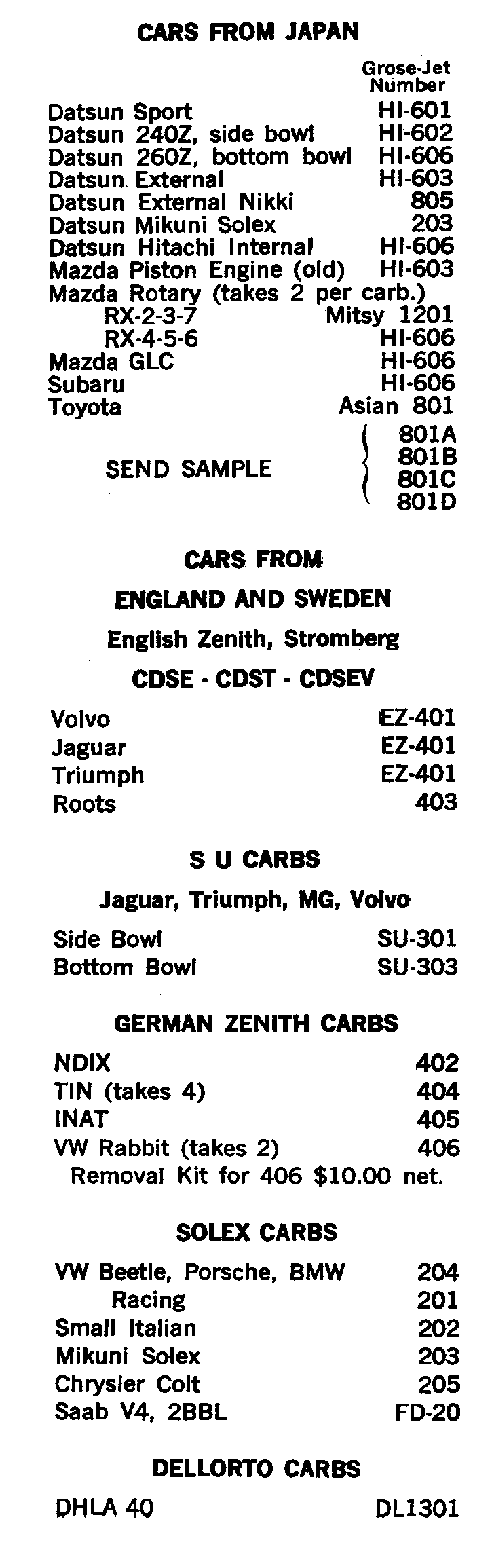

Cars from Japan
Model                G-J #
Datsun Sport            HI-601
Datsun 240Z, side bowl        HI-602
Datsun 260Z, bottom bowl    HI-606
Datsun external            HI-603
Datsun external Nikki        805
Datsun Mikuni Solex        203
Datsun Hitachi internal        HI-606
Mazda piston engine (old)    HI-603
Mazda rotary (2 per carb)
    RX-2-3-7        Mitsy 1201
    RX-4-5-6            HI-606

Mazda GLC                HI-606
Subaru                HI-606
Toyota            Asian 801

                    801A
        (send sample)    801B
                    801C

   Carbs from England and Sweden
         (English Zenith, Stromberg)
         CDSE – CDST - CDSEV

Volvo                    EZ-401
Jaguar                EZ-401
Triumph                EZ-401
Roots                    403

SU Carbs
Jaguar, Triumph, MG, Volvo

Side bowl                SU-301
Bottom bowl                SU-303

   German Zenith Carbs
NDIX                    402
TIN (takes 4)            404
INAT                    405
VW Rabbit (takes 2)        406
    (removal kit for 406 $10)

Solex Carbs
VW Beetle, Porsche, BMW        204
    Racing            201
Small Italian            202
Mikuni Solex            203
Chrysler Colt            205
SAAB V4, 2 BBL.            FD-20

     Dellorto Carbs
DHLA 40                DL1301

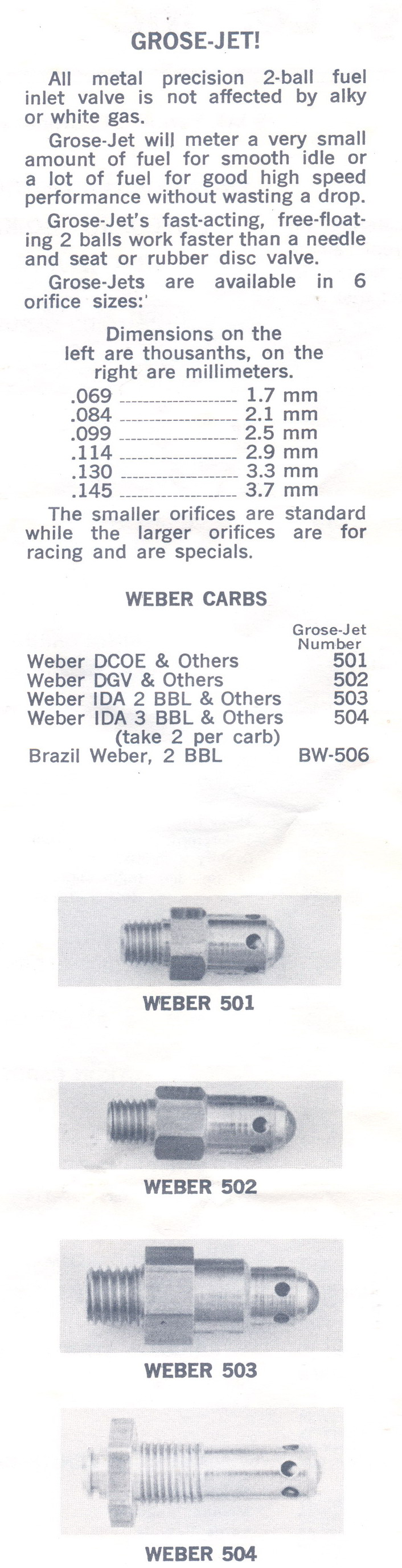

Weber Carbs

Weber DCOE & others        501
Weber DGV & others        502
Weber IDA 2 BBL. & others    503
Weber IDA 3 BBL. & others    504
  (takes 2 per carb)
Brazil Weber 2 BBL.        BW-506

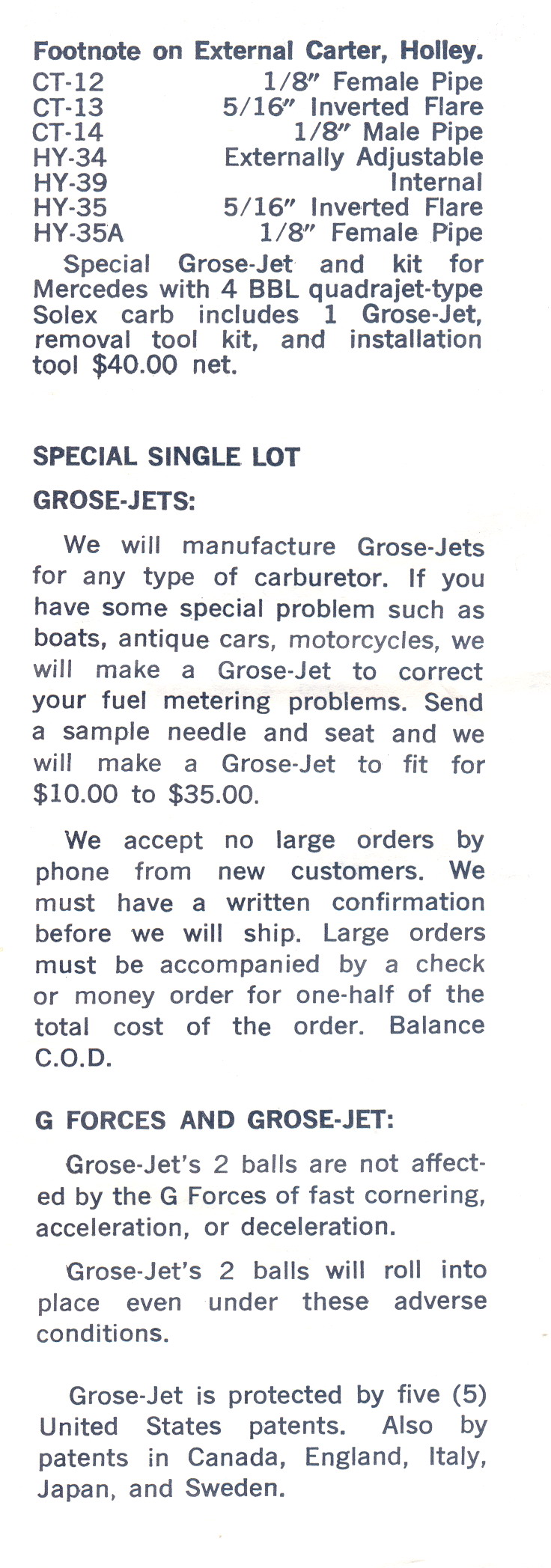

Footnote on external Carter & Holley

1/8” female pipe        CT-12
5/16” inverted flare    CT-13
1/8” main pipe        CT-14
Externally adjustable    HY-34
Internal            HY-39
5/16” inverted flare    HY-35
1/8” female pipe        HY-35A

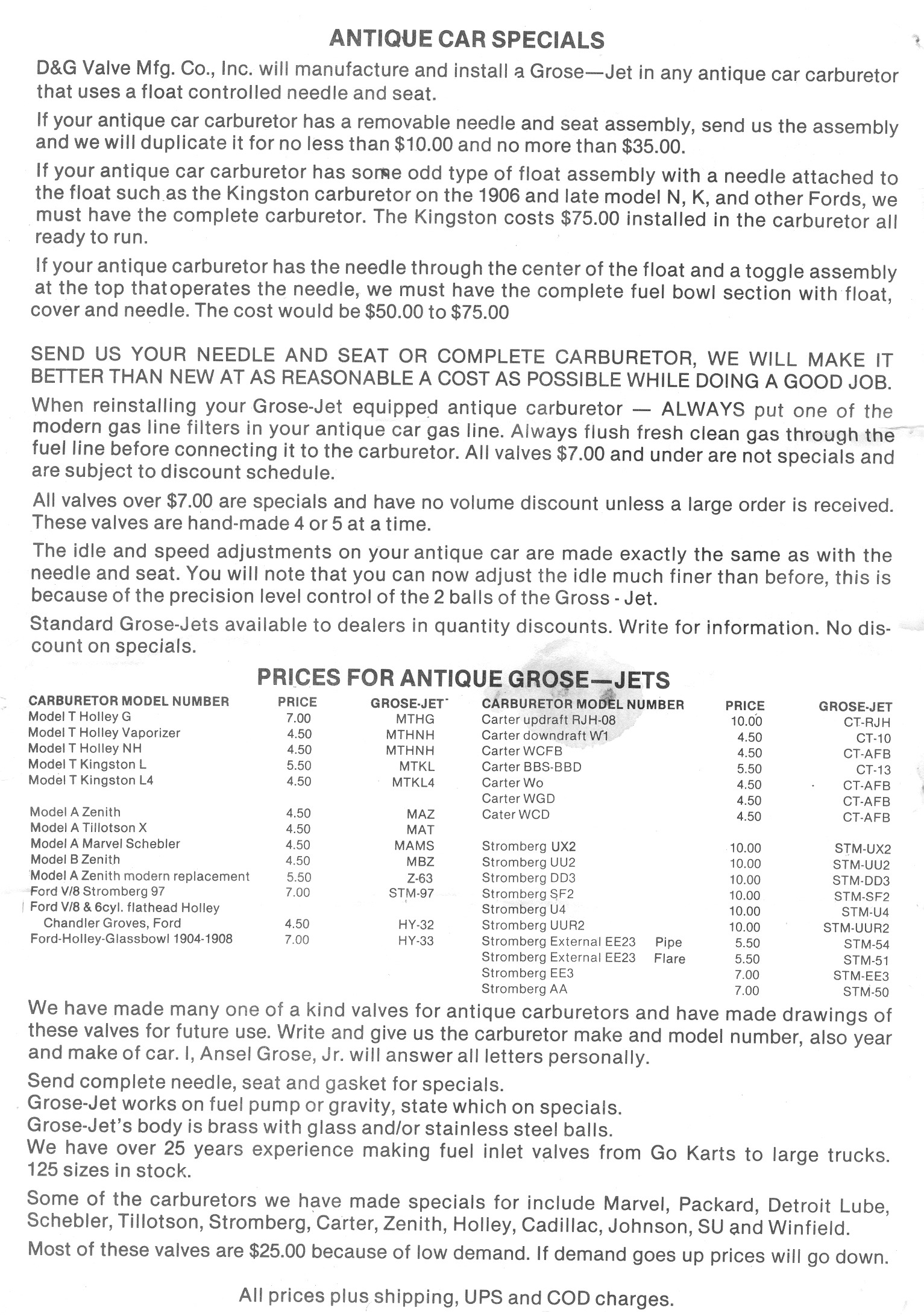

1980 prices for antique Grose-Jets

CARB MODEL            PRICE        G-J #            CARB MODEL                PRICE     G-J #

Model T Holley G         $7.00        MTHG             Carter updraft RJH-08        10.00     CT-RJH
Model T Holley Vaporizer 4.50        MTHNH        Carter downdraft W-1         4.50     CT-10
Model T Holley NH         4.50        MTHNH         Carter WCFB                4.50     CT-AFB
Model T Kingston L     5.50        MTKL                Carter BBS-BBD            5.50     CT-13
Model T Kingston L4     4.50        MTKL4            Carter WO                 4.50     CT-AFB
                                                                              Carter WGD                 4.50     CT-AFB
Model A Zenith          4.50        MAZ                     Carter WCD                 4.60     CT-AFB
Model A Tillotson X     4.50        MAT
Model A Marvel Schebler     4.50        MAMS       Stromberg UX2            10.00     STM-UX2
Model B Zenith          4.50        MBZ                      Stromberg UU2            10.00     STM~UU2
Model A Zenith(modern)   5.50        Z-63               Stromberg DD3            10.00     STM-DD3
Ford V-8 Stromberg 97     7.00        STM-97        Stromberg SF2            10.00     STM-SF2
Ford V-8 & 6 cyl. flathead Holley                           Stromberg U4            10.00     STM-U4
  Chandler Groves, Ford     4.50        HY-32          Stromberg UUR2            10.00  STM-UUR2
 Ford-Holley-Glassbowl     7.00        HY-33          Stromberg external EE23    pipe     5.50     STM-54
        1904-1908                                                     Stromberg external EE23    flare     5.50     STM-51
                                                                               Stromberg EE3             7.00     STM-EE3
                                                                               Stromberg AA             7.00     STM-50
